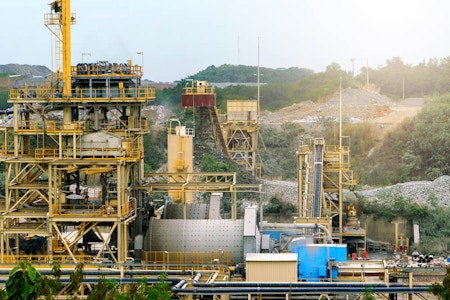

Fluke® tools perform like champions in the most challenging utility-scale mining  environments. You can depend on Fluke tools to keep your world up and running.

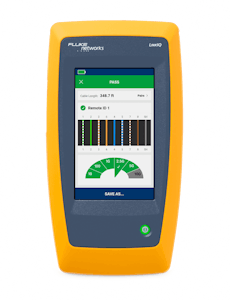

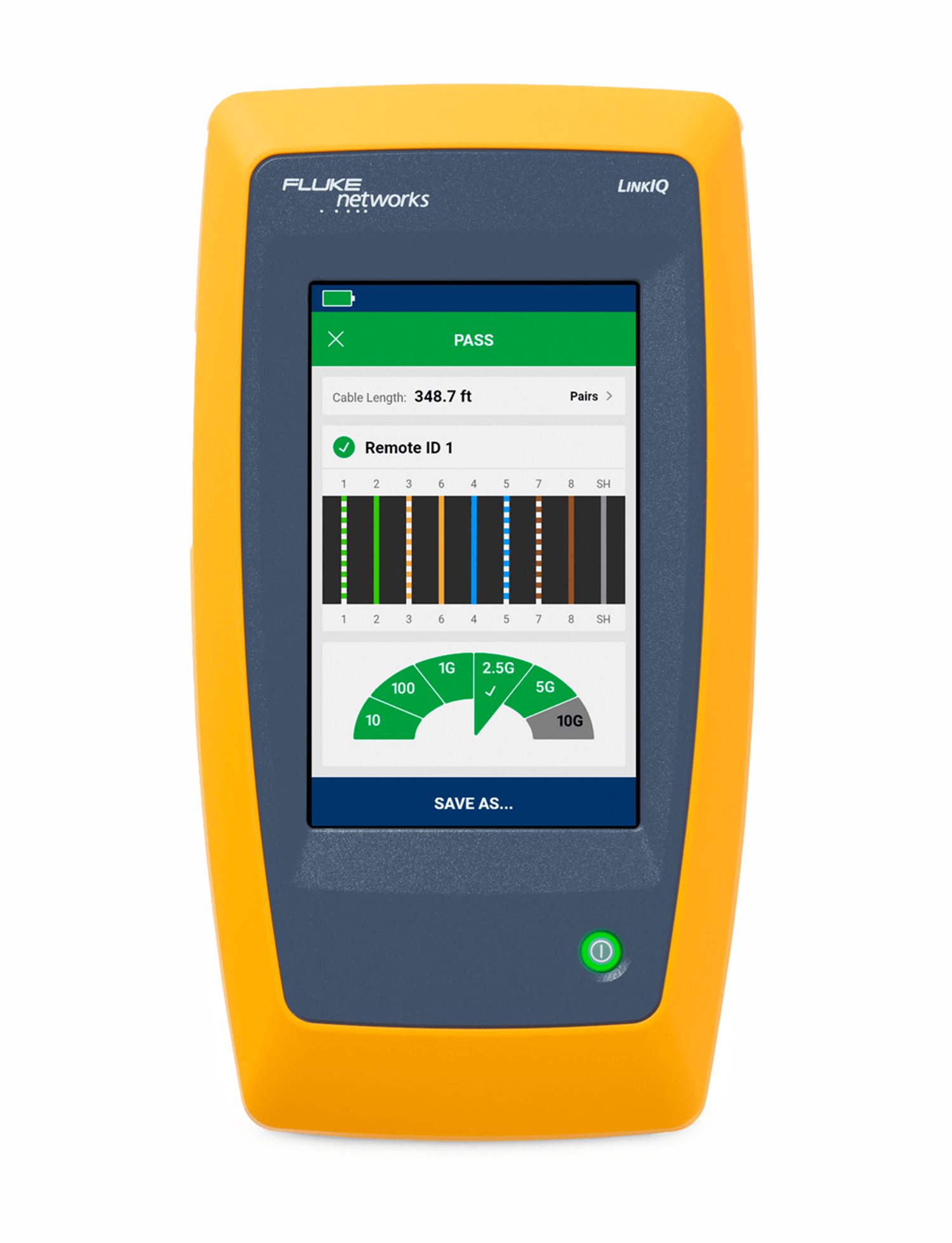

LinkIQ™ Smart Link Cable + Network Tester

LinkIQ™

LinkIQ™ Smart Link Cable + Network Tester

LinkIQ™ Smart Link Cable + Network Tester

The LinkIQ™ Network+Cable Tester is designed to provide trusted cable testing along with network testing professionals need to do their jobs. LinkIQ™ validates cable performance (up to 10 Gig) using frequency-based measurements and provides distance-to-fault information along with a wire map of the cable under test. The LinkIQ™ also performs ping tests to verify connectivity and nearest switch diagnostics to identify key network issues and validate switch configuration eliminating the need for use of another device. Additional features include Analog and Digital Toning, Port Blink, Remote Office Locators, and the ability to manage results via LinkWare™ PC.

  • Link performance identification test to identify common faults

  • In-depth test of POE level and power

  • Network test: switch configuration information and ping test

Key Features
Languages supported in UI
English, German, French, Japanese, Spanish, Thai, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese
Weight
624g
Battery
Type: Lithium-ion, 3.6 V, 6400 mAh
Life: 8 hours typical
Charge time: 4.5 hours
Charging temperature range: 0 °C to +40 °C
Power Adapter
Input: 100 to 240 VAC ±10%, 50/60Hz
Output: 15 VDC, 2 A maximum
Class II
Host Interface
USB type C
Display
800 x 480 color capacitive multi-touch
Dimensions
8.5 in x 4.5 in
Operating Temperature
0°C to 45°C
Storage Temperature
-10°C to +60°C
Operating Relative Humidity
0 % to 90 %, 0°C to 35°C, 0 % to 70 %, 35°C to 45°C
Operating Altitude
4,000 m; 3,200 m with ac adapter
Vibration
Random, 2 g, 5 Hz-500 Hz
Drop
1 m drop, 6 sides
Active Network Diagnostics
Diagnostic Protocols
Link Layer Discovery Protocol (LLDP); Cisco Discovery Protocol (CDP); Fast Link Pulses (FLP); Internet Control Messaging Protocol (ICMP); Dynamic Host Configuration Protocol (DHCP)
IP Address Setup
LinkIQ address, DNS Server, Gateway for IPv4 or v6 either manually or via DHCP
IP Ping Test Results
Four response time results for target, DNS Server(s), Gateway, plus average and number lost
Power Over Ethernet Compatibility
Ethernet Alliance Certified to IEEE 802.3af/at/bt, Hardware negotiation with signature resistance, Software negotiation with LLDP/CDP
Power Over Ethernet Measurements
Loaded Voltage (V), Loaded Power (W)
Port Blink
Blink the light of the connected port
Cable Test Specifications
Test Port
Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs
Commissioning Autotests
10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only. Test Speed: 6 seconds for lengths < 70 m.
Cable Types
Balanced twisted-pair cabling, Unshielded twisted-pair, Screened twisted-pair, 2-pair and/or 4-pair
Wire Map-Only Tests
Document wire map, Length of each pair, Diagnose split pairs, User selectable T568A or T568B, User selectable crossover settings (Straight through, Half-crossover, Full-crossover), Test speed: 1 second for lengths < 120 m
Length (Maximum)
305 m
Nominal Velocity of Propagation (NVP)
User settable
Tone Generator
Generates digital tones compatible with Fluke Networks IntelliTone probe. Generates analogy tones compatible with general analog probes.
Remote ID Locators
Use remote ID terminations to identify up to 7 unique ports or office outlets
